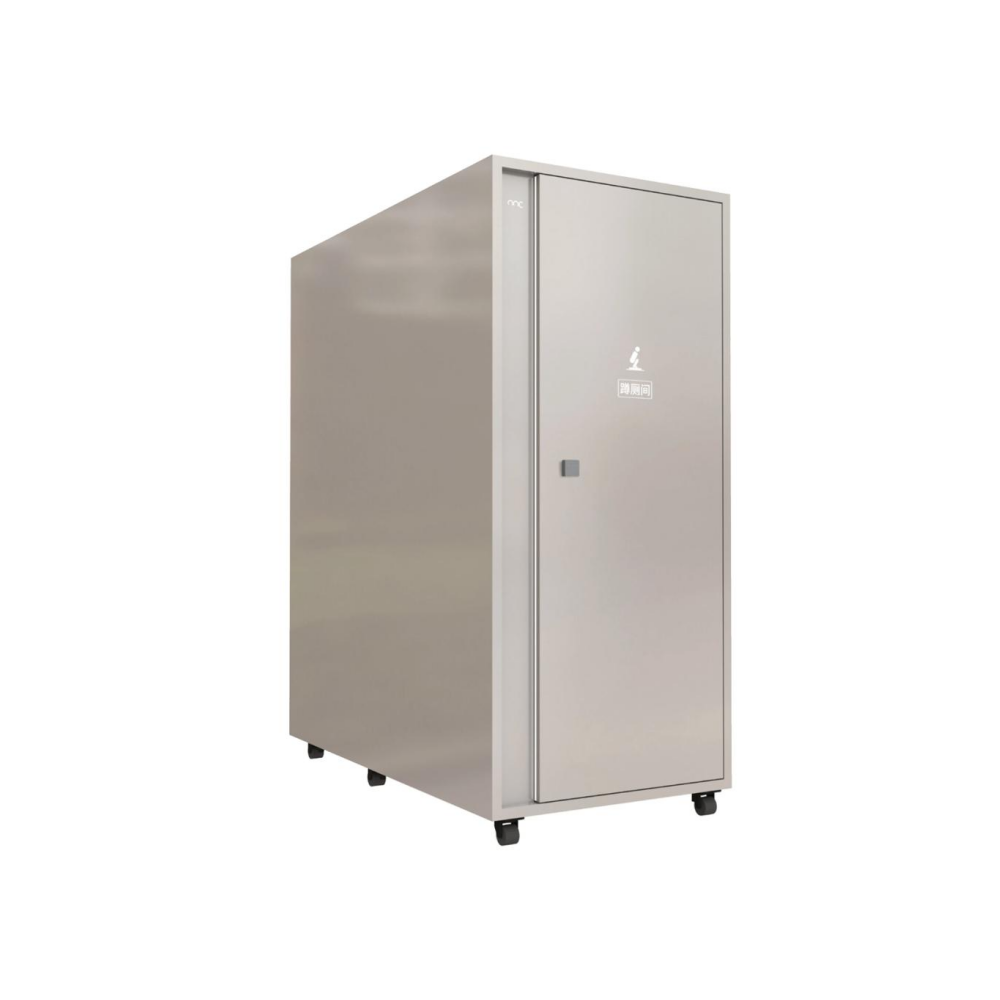

Smart Mobile Eco-friendly Public Toilet A2

Model A2 features a vacuum sewage system and can be connected directly to municipal water and drainage where available. In locations without municipal service, optional external maintenance modules—including fresh water and wastewater tanks—can be installed. The unit comes with essential facilities such as hooks, handrails, tissue holder, and a finished trash bin, while smart features include air conditioning, an emergency call button, occupancy status indicator light, fresh air ventilation, and a deodorization system. Additional optional features such as a washbasin, vanity mirror, and extra hooks are available to enhance convenience and functionality.

Main Materials & Standard Configuration

  • Exterior: Aluminum plate

  • Interior: Aluminum plate; floor with PVC flooring + stainless steel base

  • Lighting: 4000K LED light strip

  • Equipped with a vacuum sewage system. When municipal connections are available, it can be connected to water supply and drainage; when there is no municipal service, an optional external maintenance module (fresh water tank and wastewater tank) can be installed. Additional optional features include a washbasin, vanity mirror, and other auxiliary functions.

Standard Functions

  1. Basic Facilities: Vacuum sewage system，Hooks，Handrails，Tissue holder，Finished trash bin

  2. Smart & Value-added Features: Air conditioning，Emergency call button，Occupancy status indicator light，Fresh air ventilation，Deodorization system

  3. Optional Features: Additional hooks，Mirrors，Faucets，Integrated washbasin shelf

Specifications

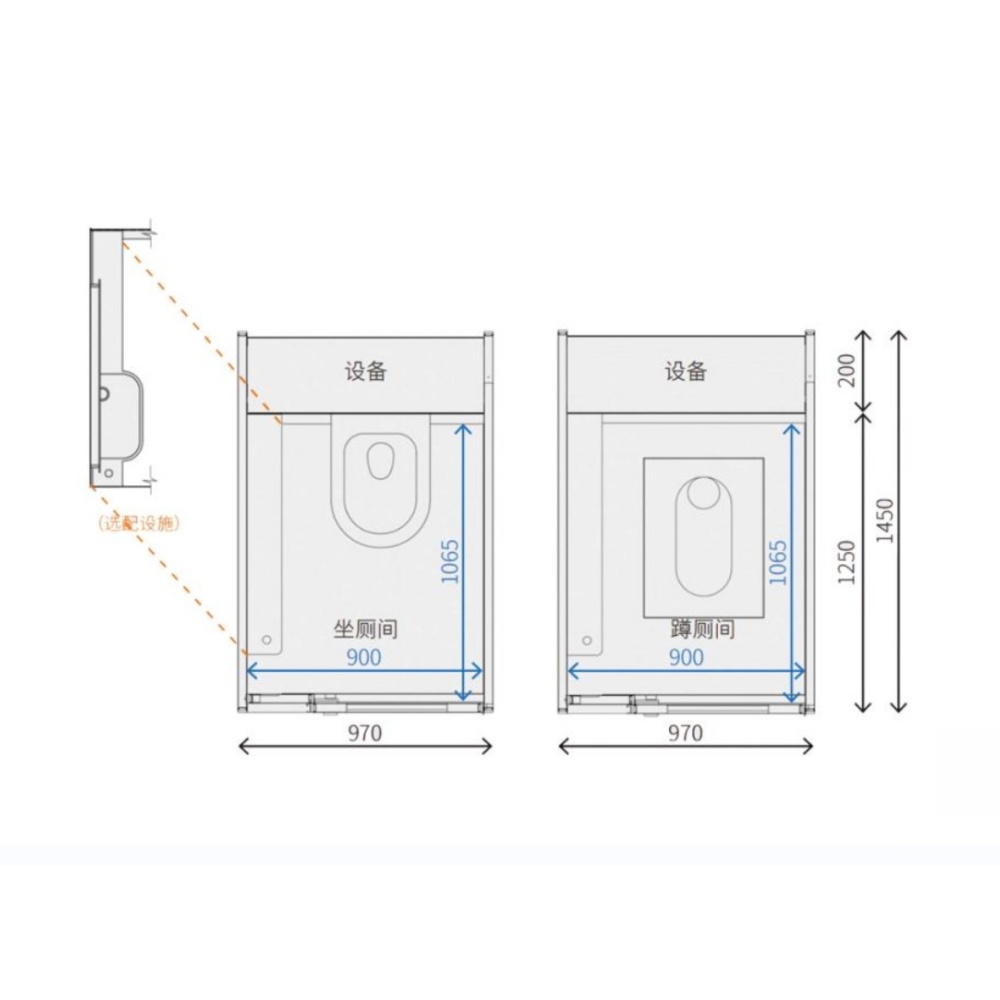

  • External Dimensions: 1450mm (L) × 970mm (W) × 2300mm (H)

  • Internal Dimensions（Seated Toilet） : 1065mm (L) × 900mm (W) × 2150mm (H)

  • Weight: Approx. 400kg

  • Voltage: 220V, 50Hz

  • Rated Power: Squat 0.9kW (including air conditioner 0.4kW)，Seated 1.1kW (including air conditioner 0.4kW)

  • Color choose：Dawn Gold，Titanium Silver，Cloud Birch

  • Note：Optional auxiliary heating and thermal insulation armor, with dimensions including armor: 1500mm (L) × 1070mm (W) × 2350mm (H)

Connection Options

  1. With municipal service: Can be directly connected to the municipal water and sewage network.

  2. Without municipal service: Optional maintenance modules are available:

    • Small maintenance module (supports “1-to-2” units): Fresh water 250L, wastewater 500L; dimensions: 970mm × 800mm × 2300mm

    • Medium maintenance module (supports “1-to-4” units): Fresh water 500L, wastewater 1000L; dimensions: 970mm × 1450mm × 2300mm
