Product Configuration
- Exterior Panels: Made from 1.2mm thick 304 stainless steel, including the urinal for superior corrosion resistance and hygiene.
- Structural Frame: Columns and top/bottom panels are made of 1.4mm thick galvanized steel, ensuring strength and stability.
- Surface Treatment: The entire frame is treated with electrostatic spraying for durability, while the base features anti-corrosion treatment.
- Wall Panels: 50mm insulated foam sandwich panels provide thermal insulation.

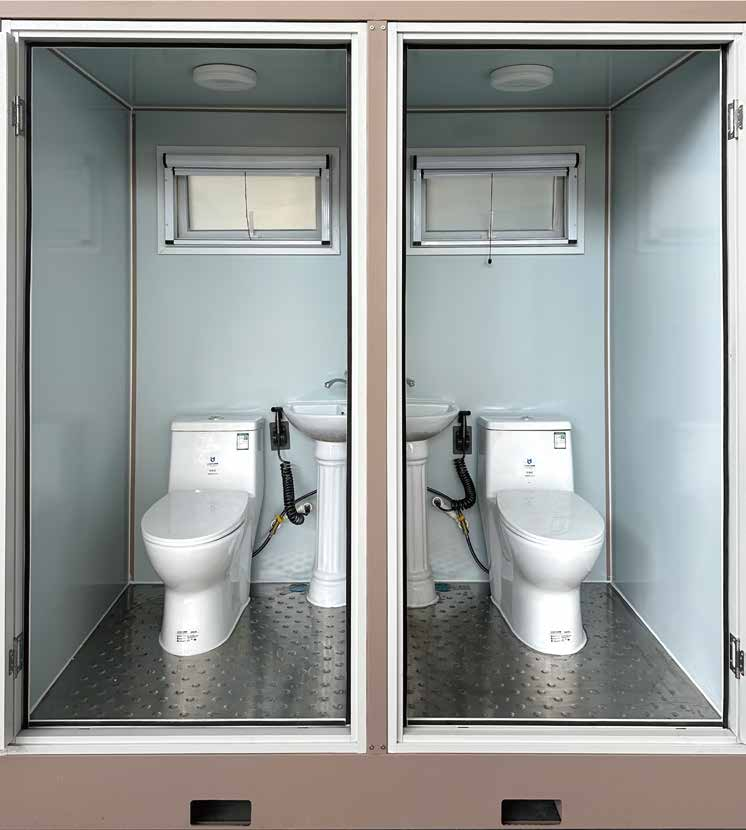

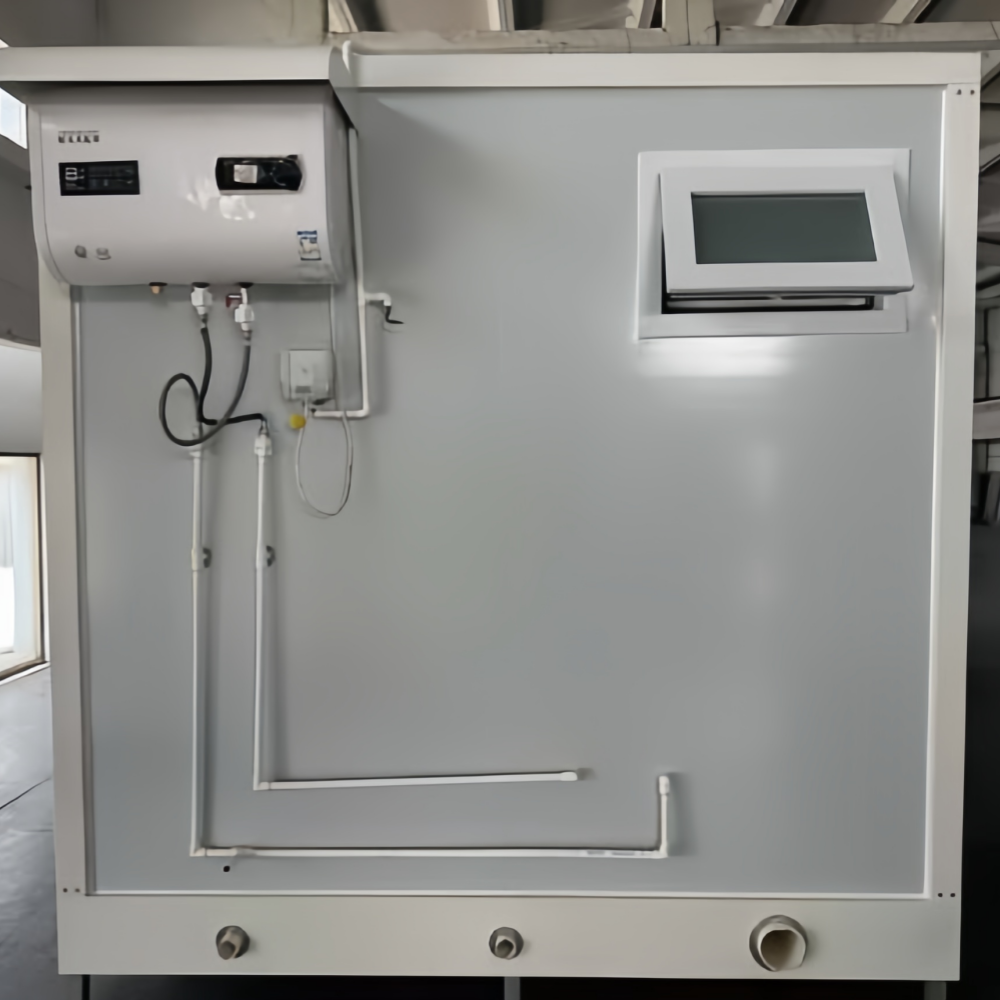

Interior Setup Includes

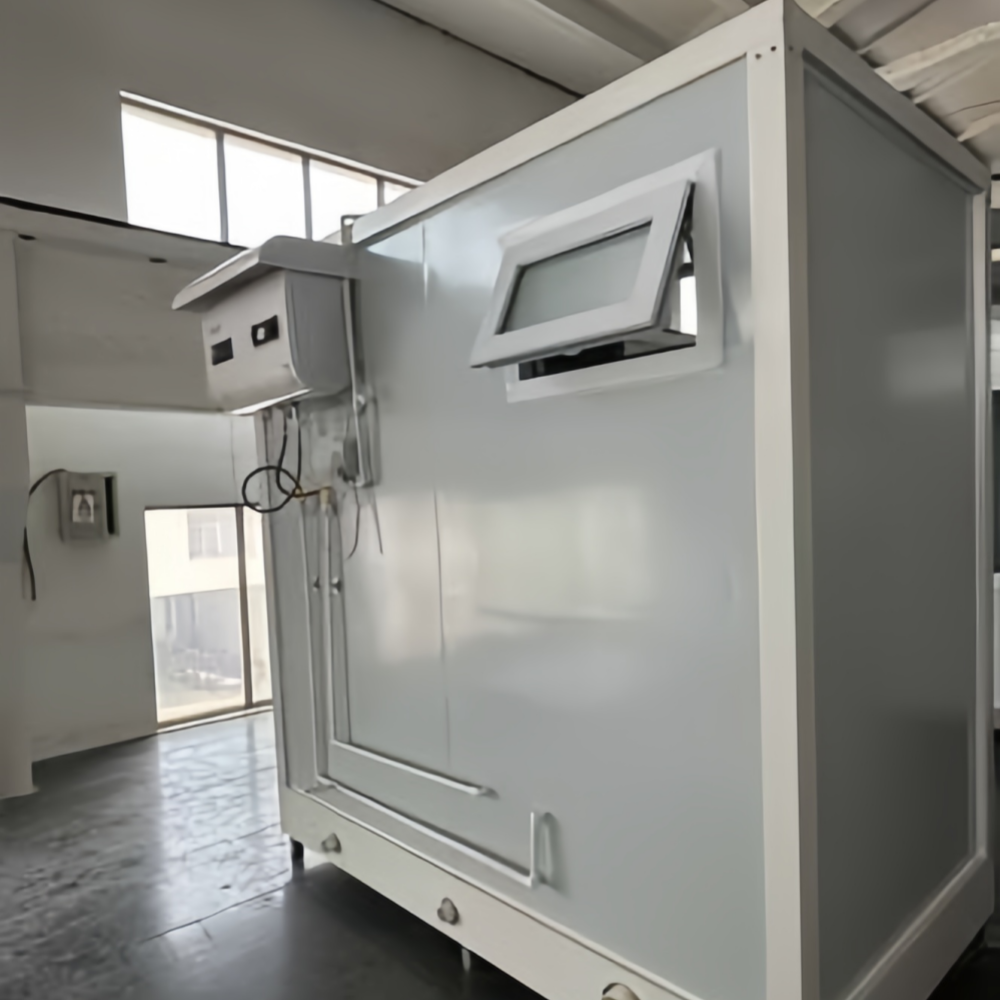

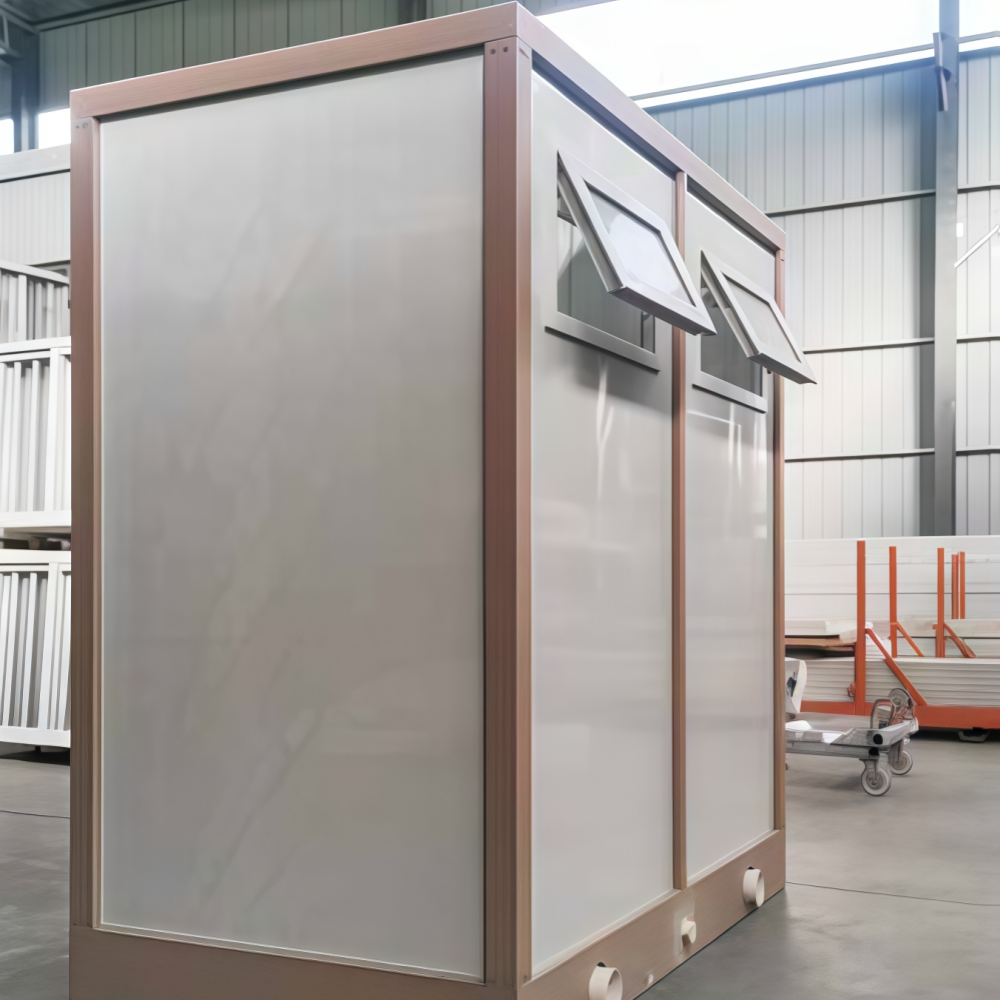

- Rainproof U-PVC top-hung windows

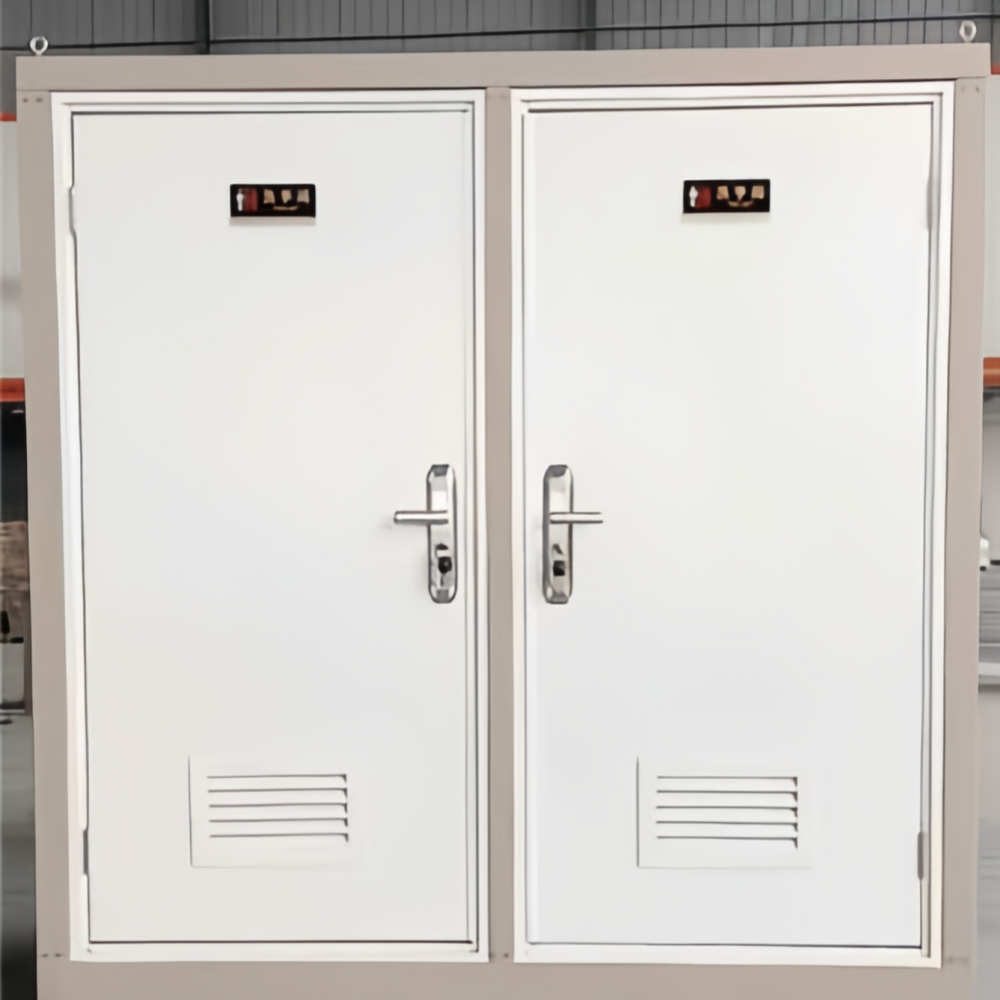

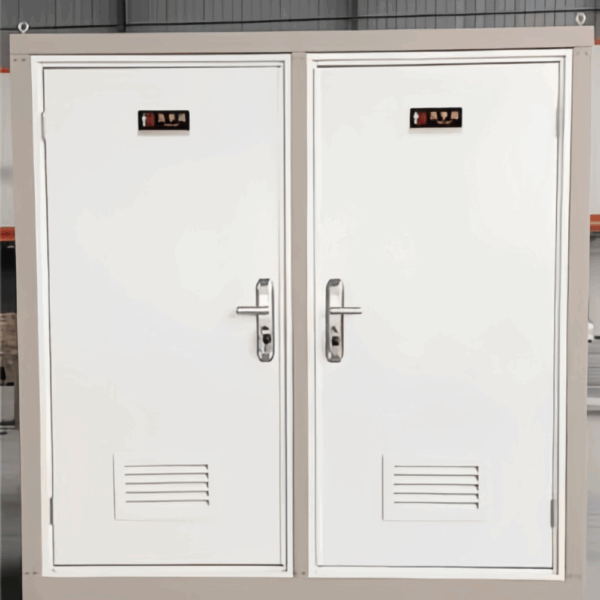

- Steel door for secure entry
- Water-saving flush tank
- Ceramic washbasin with pedestal
- High-end sanitary fittings
- LED voice-activated energy-saving light
- Top-tier domestic sewage system
Product Features
- Efficient Assembly & Transport：Designed for quick installation and optimized for cost-effective long-distance shipping.
- High Loading Efficiency：20ft container: Up to 10 double units / 20 single units；40ft container: Up to 20 double units / 40 single units
(All quantities based on packed format) - Modular Quick-Assembly Design：Pre-fabricated structure enables fast on-site assembly with minimal labor.
- Portable & Reusable：Easy to disassemble and relocate—ideal for temporary or mobile applications.
- Refined Aesthetics & Quality Craftsmanship：Clean, professional appearance with attention to construction detail.
- Long Service Life：With anti-corrosion base treatment and electrostatic coating, the unit offers a lifespan of over 15 years.
SPECIFICATIONS
| Type | Frame Size (mm) | Inside Dimension (mm) |
|---|---|---|
| Unit Size (Toilet) | 1120 | 970 |
| 1220 | 1070 | |
| 2250 | 2000 | |
| Two-Position Size (Toilet) | 2145 | 1995 |
| 1220 | 2000 | |
| 2250 | 2000 |
