Materials & Configuration
- Main Panels: Made of 304-grade stainless steel (1.2mm thick) for both the exterior and squat toilet.
- Frame Structure: Columns and top/bottom frames use 1.4mm thick galvanized steel panels.
- Surface Treatment: Full unit frame coated with electrostatic spray; anti-corrosion treatment applied to the base for enhanced durability.
- Wall Panels: 50mm foam-insulated panels ensure good thermal performance.

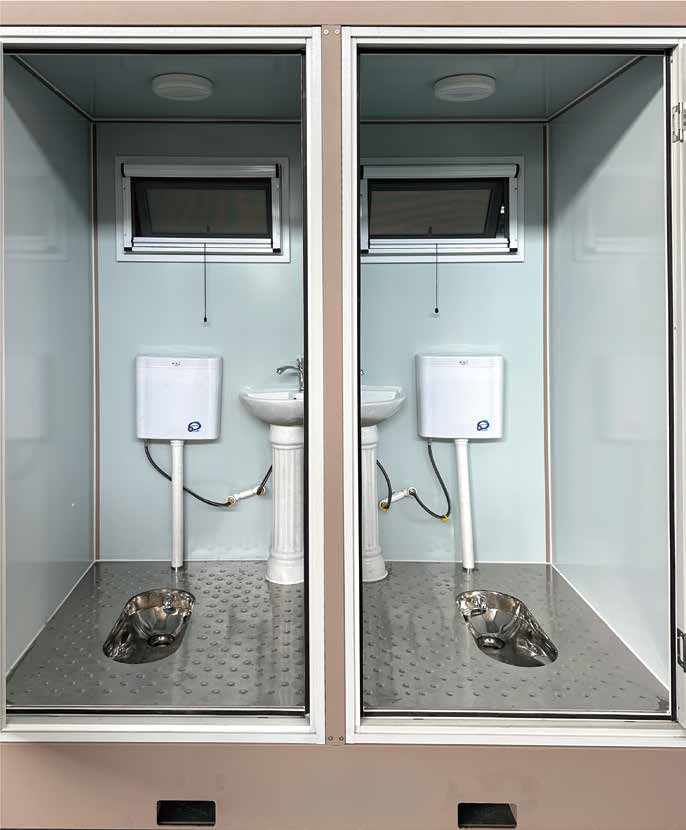

Interior Features
- Rainproof U-PVC top-hung window
- Steel bathroom door
- Water-saving flush tank
- Ceramic pedestal wash basin
- Premium sanitary fittings
- LED voice-activated energy-saving light
- Top-tier domestic sewage system components
Key Advantages
- Efficient Installation & Transportation：Modular design enables fast setup and cost-effective long-distance shipping.
- Optimized Container Loading：20ft container: 10 sets (dual units) / 20 sets (single units)；40ft container: 20 sets (dual units) / 40 sets (single units)(All based on packed, ready-to-ship format)
- Quick-Assembly Modular Design：The unit’s prefabricated structure allows for rapid installation with minimal labor.
- Portable and Reusable：Easy to dismantle, relocate, and reuse—ideal for mobile or temporary deployments.
- Elegant Appearance & Fine Craftsmanship：The product combines a clean, professional look with robust build quality.
- Durable Finish：Electrostatic spray coating and anti-corrosion treated base extend product lifespan to over 15 years.
SPECIFICATIONS
| Type | Frame Size (mm) | Inside Dimension (mm) |
|---|---|---|
| Unit Size (Squat) | 1120 | 970 |
| 1220 | 1070 | |
| 2280 | 1994 | |
| Two-Position Size (Squat) | 2145 | 1995 |
| 1220 | 1994 | |
| 2280 | 1994 |
