Product Confguration
- 304 panel stainless steel (1.2 thick), 304 urinal
- Column material: 1.4 solid thickness galvanized steel plate
- Top and bottom material: 1.4 Solid thickness galvanized steel plate, the whole box frame adopts electrostatic spraying process, and the bottom is treated with anti-corrosion
- Foam wallboard: 50cm

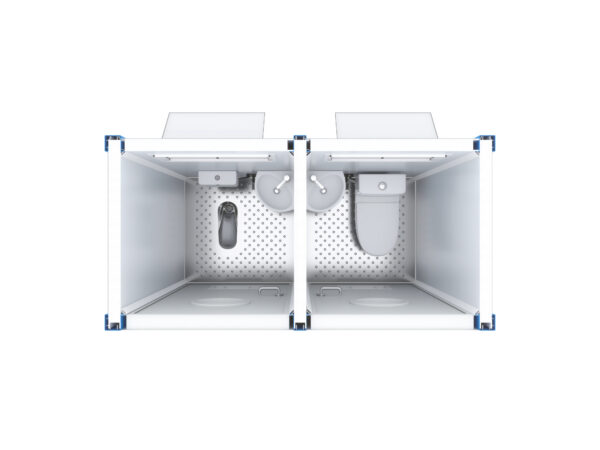

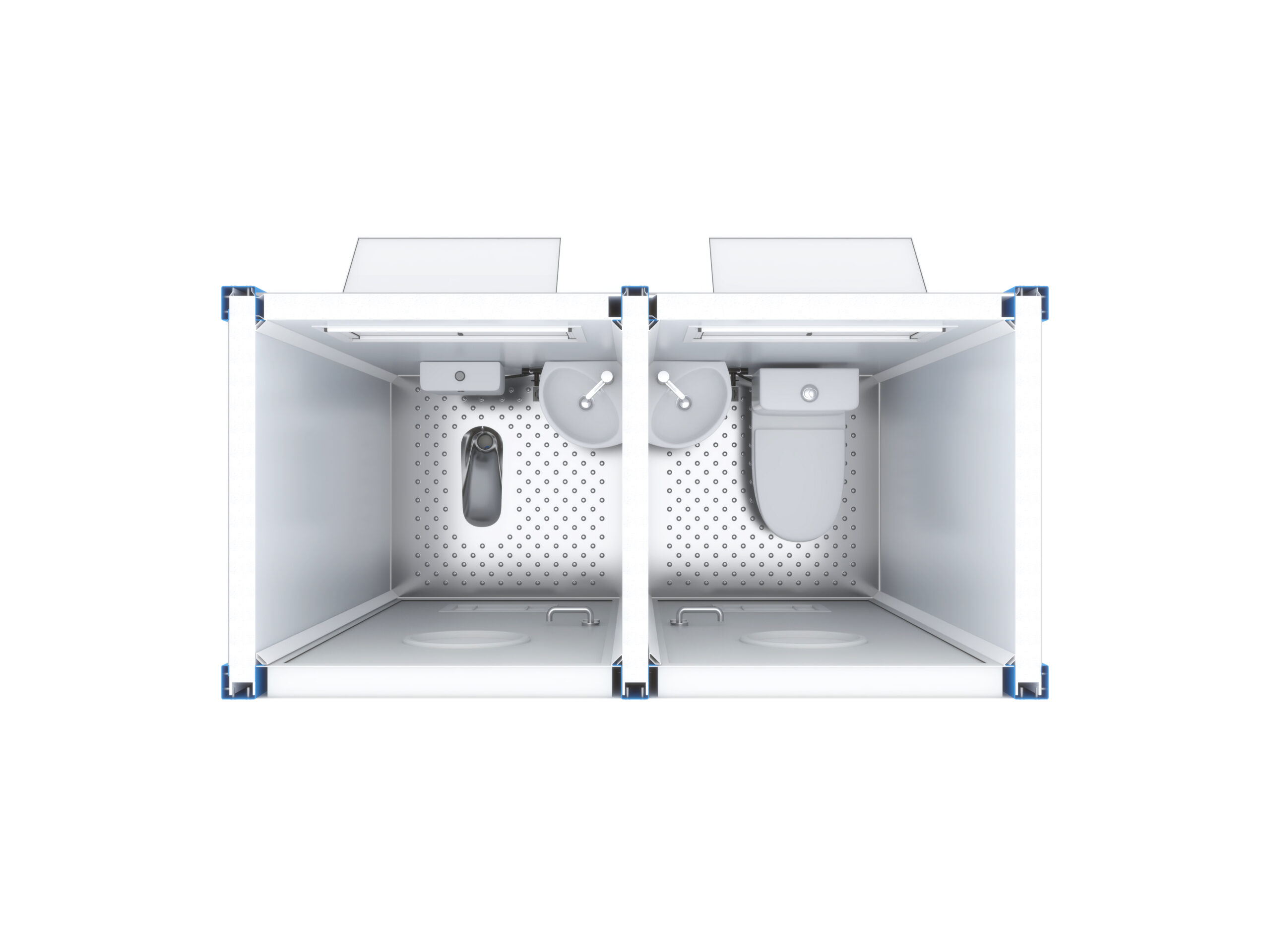

- Internal configuration: Rain-proof U-PVC hanging windows, bathroom steel doors, energy-saving water tanks, ceramic toilet，wash-column basins, high-end sanitary ware, LED voice-controlled energy-saving lamps, domestic first-line brand sewage system
Product Features
- Efficient to install and cost-saving for long-distance transportation
- 20ft container for 9 units
40ft container for 18 units
(All counts refer to packaged units ready for shipping) - Modular quick-assembly design for fast setup
- Easy to relocate, disassemble, and reuse
- Sleek, solid look with quality craftsmanship
- Powder-coated fnish with anti-corrosion treatment on the base-designed to last over 15 years
Unit Size
Outer Diameter Size
Specification | Width | Length | Height |
|---|---|---|---|
| Dimensions | 1220 | 2145 | 2250 |
Inner Diameter Size
Specification | Width | Length | Height |
|---|---|---|---|
| Dimensions | 1070 | 1995 | 1994 |
