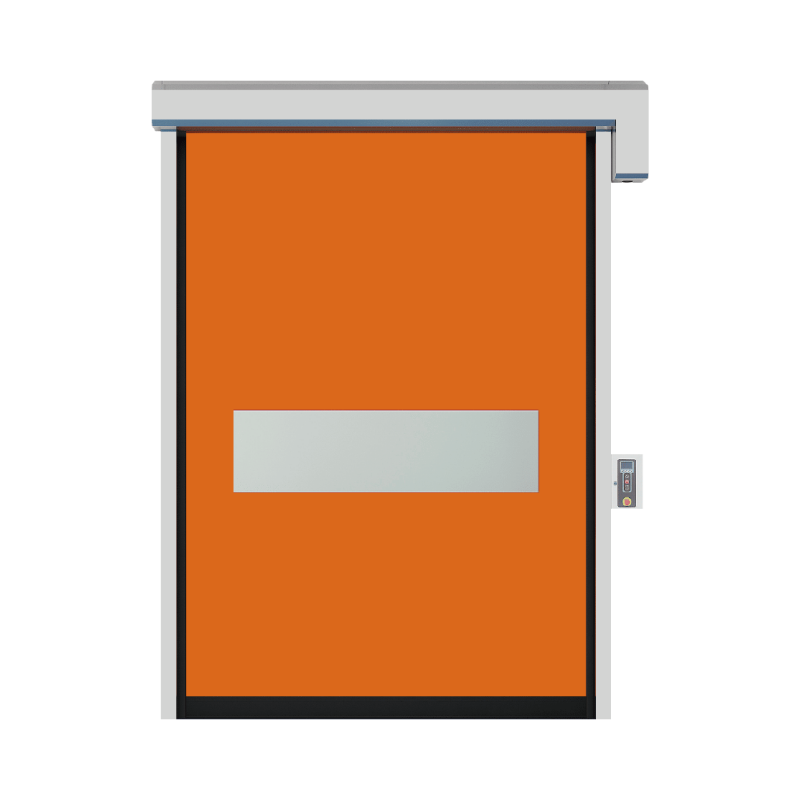

Clean Airtight Rolling Shutter Door (Premium model)

This premium model is specially designed for isolating aseptic overpressure environments, featuring excellent airtightness to help maintain stable pressure differentials. With a compact structure and specialized sliding system, it offers extremely low air permeability, making it ideal for use in pressure-controlled clean environments. Commonly applied in pharmaceutical, electronic, and food industries, it is widely used in cleanrooms, warehouses, logistics passages, and other controlled areas.

Product Features

  • Designed for isolating aseptic overpressure environments. Due to its airtightness, it can ensure the control of pressure difference, thereby accurately determining the size of the ventilation/air purifcation system, Due to its special compact structure and special sliding system, its air permeability is very low, so it is suitable for pressure-controlled environments.

Application Areas

  • The product is suitable for clean places such as medicine, electronics, and food, and isoften used in clean workshops, warehouses, logistics channels and other areas.

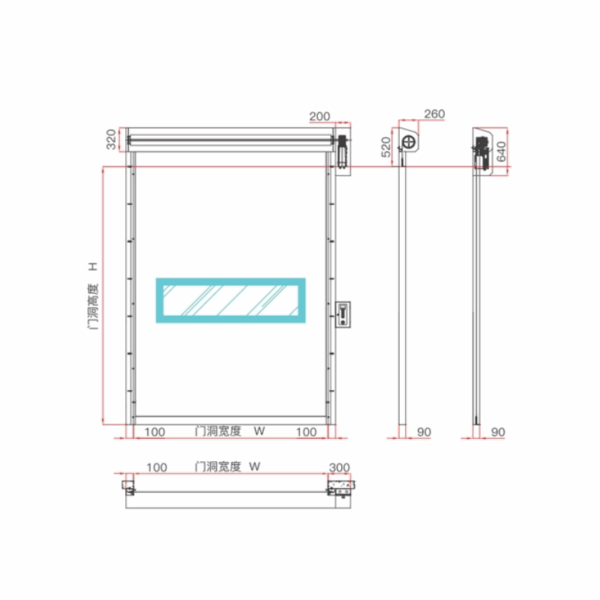

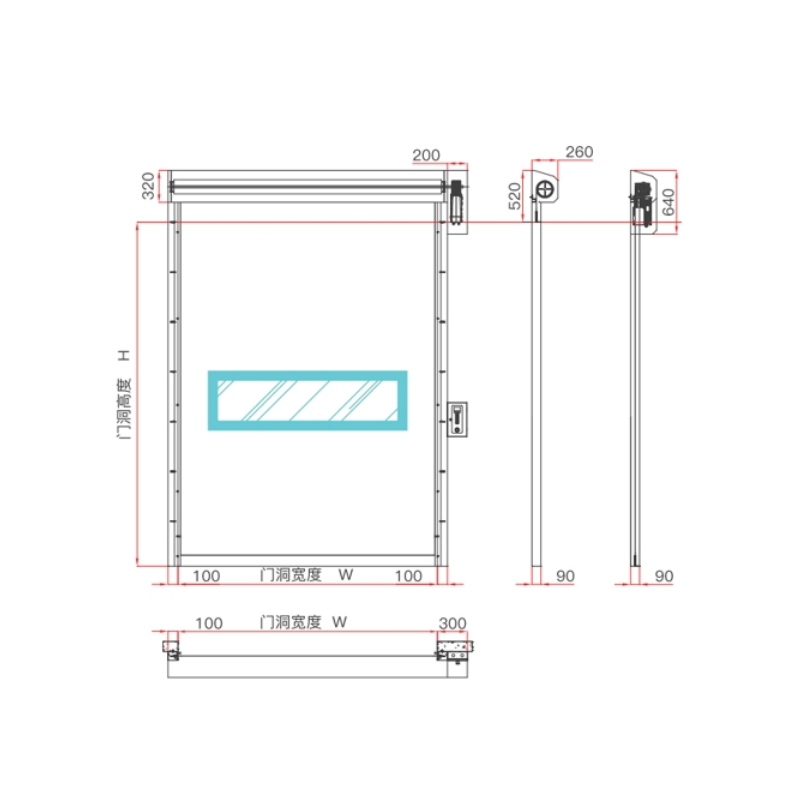

SPECIFICATIONS

NameSpecifications
Standard size (mm)W3000*H3500
SpeedOpening/closing speed is adjustable from 0.6 to 2.o m/s
Housing/Motor coverGalvanized and baked paint/Stainless steel 304
Door curtainStandard 2.5mm PVC is available in 0.8mm and 1.2mm
