Product Features
- Efficient Air Purification: The air shower is a highly versatile local purification system designed to remove dust, hair, and bacteria from personnel or goods before entering clean areas. It utilizes a fan to generate strong, filtered airflow, which is sprayed from stainless steel nozzles to effectively remove surface contaminants.
- Multi-Stage Filtration System: Equipped with a G4 primary filter and an H13 high-efficiency filter, the air shower ensures a two-stage filtration process, maintaining the required purification level for cleanrooms and dust-free workshops.
- Electronically Interlocked Doors: The two doors of the air shower are electronically interlocked, preventing cross-contamination and unfiltered air from entering clean areas. This airlock function helps maintain strict cleanliness standards in controlled environments.

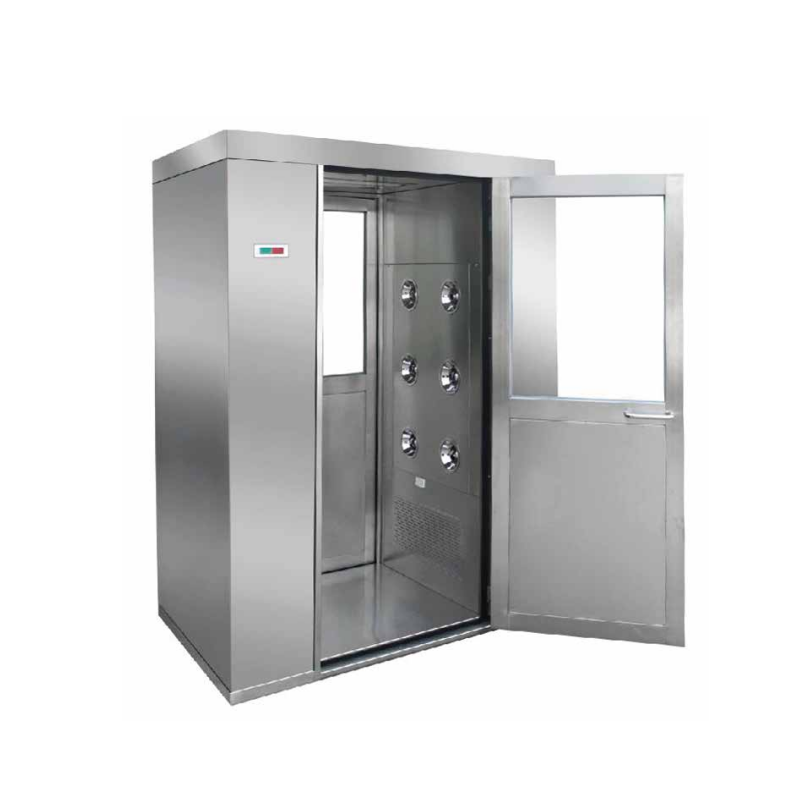

- 360° Adjustable Stainless Steel Nozzles: The system features stainless steel nozzles with 360° adjustability, providing uniform airflow for optimal cleaning efficiency. The centrifugal fan operates with high airflow and low noise, ensuring a wind speed of 22-27m/s at the nozzle outlet.
- Fully Automated Operation: Integrated with an infrared sensor, the air shower operates automatically upon detection of personnel or goods, ensuring hands-free functionality and maximum convenience.
- User-Friendly LCD Display & Voice Prompts: The air shower is equipped with an LCD time display, allowing users to set the air shower duration from 0 to 99 seconds. The system also includes humanized voice prompts to guide users through the process efficiently.
Applications
- Widely used in pharmaceutical, food processing, cosmetics, and electronics industries, the air shower is an essential purification system for cleanrooms and dust-free manufacturing environments, ensuring high product quality and compliance with cleanliness standards.
SPECIFICATIONS
| Category | Single Player Single Blow | Single Player Double Blow | Double Blowing for Two People |
|---|---|---|---|
| Product model | Single player single blow | Single player double blow | Double blowing for two people |
| Filtration efficiency | ≥0.3um dust ≥99.95% (Sodium flame method) | Same | Same |
| Jet velocity | ≥20m/sec | Same | Same |
| Number of nozzles | 6 pieces | 12 pieces | 18 pieces |
| Air volume | 1000m³/h | 2000m³/h | 3000m³/h |
| Power supply | AC, 380V, 3@50Hz | Same | Same |
| Weight | ~120kg | ~180kg | ~250kg |
| Max. power consumption | 0.55KW | 1.1KW | 1.5KW |
| Box structure | Steel plate spray coating structure, 304 stainless steel structure, color steel plate structure | Same | Same |
| Chassis | High quality SUS304 stainless steel plate channel | Same | Same |
| External dimensions (W×D×H) | 1200×1000×2100 mm | 1400×1000×2100 mm | 1400×1400×2100 mm |
| Applicable size (W×D×H) | 800×900×1960 mm | 800×900×1960 mm | 800×1300×1960 mm |
| High-efficiency filters | 600×600×50×① | 600×600×50×② | 820×600×50×② |
| Fluorescent lamps | 12W | 12W | 12W |
| Applicable number of people | Single player single blow | Single player double blow | Double blowing for two people |
